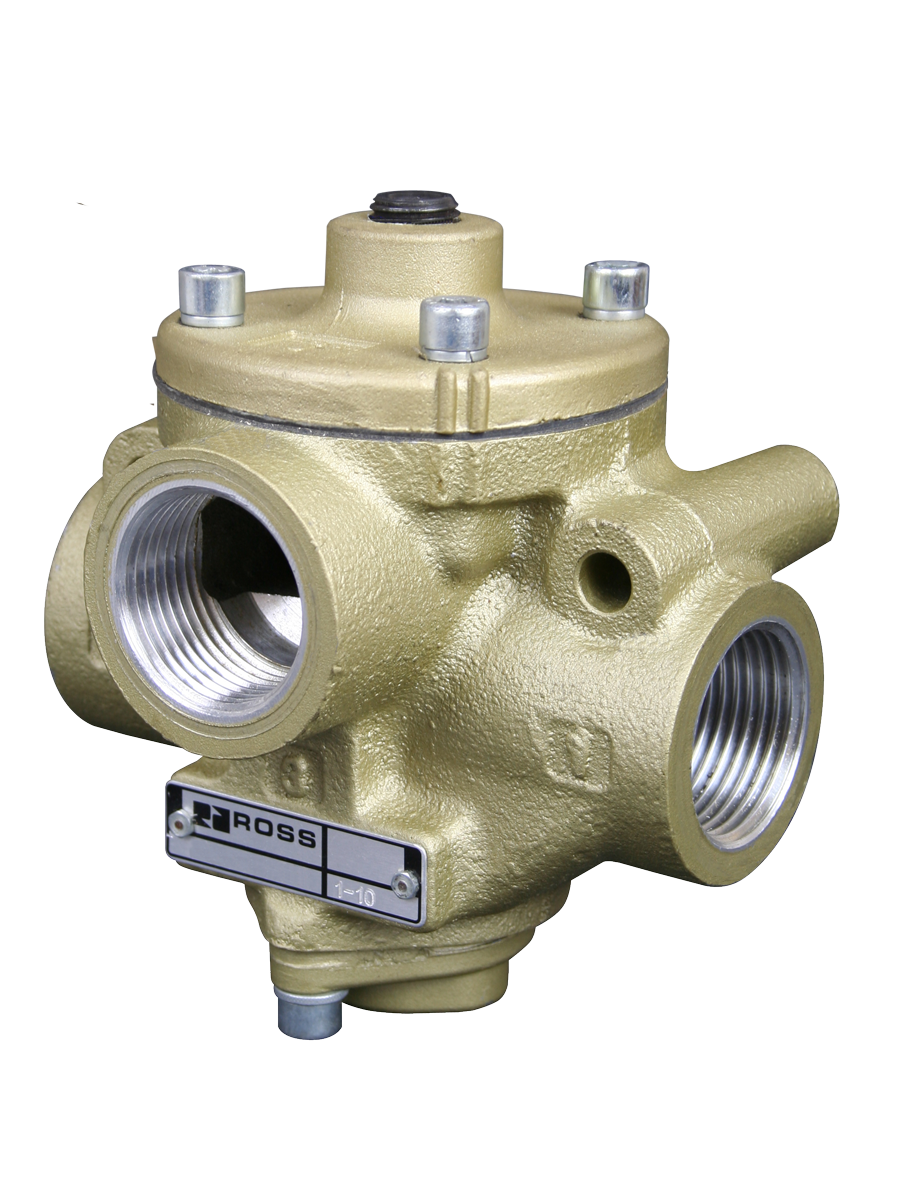

Standard Temperatures [Classic 27 Series] D2753A6001
- Poppet valves
- Inline mounted
- High Flow Rate
- Internal or external; easily field-convertible for use with an external pilot supply
- Consistent response time over the life of the valve
Need Help? No Problem!
Customer Service
Technical Service
+33-(0)1-49-45-65-65
Need Help? No Problem!
Customer Service
Technical Service
+33-(0)1-49-45-65-65
Product Information
| Valve Type | Directional Control |
| Series | 27 |
| Application | General |
| Actuation | Pneumatic |
| Function | 3/2 Single Pilot |
| Default Position | Normally Closed |
| Return | Spring |
| Thread Type | G |
| Inlet Pipe Size | 1" |
| Outlet Pipe Size | 1" |
| Exhaust Pipe Size | 1-1/2" |
| Construction | Poppet |
| Mounting | Inline |
| Connection | Hardwired |
| Pilot Type | External |
| Size | 1-1/4" |
| Cv (1-2) | 23 |
| Cv (2-3) | 34 |
| Ambient Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 15 to 150 psig (1 to 10 bar) |
| Pilot Supply Minimum | equal to or greater than inlet pressure |
| Length | 6.63 in (168 mm) |
| Width | 4.84 in (123 mm) |
| Height | 7.49 in (190 mm) |
| Weight | 8.0 lb (3.6 kg) |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Acetal, Stainless Steel |
| Seal Material | Buna-N |
+
Standard Temperatures [Classic 27 Series]
D2753A6001
Contact Us for a 3D Model
+
Standard Temperatures [Classic 27 Series]
D2753A6001
Contact ROSS France for Ordering Information
+
