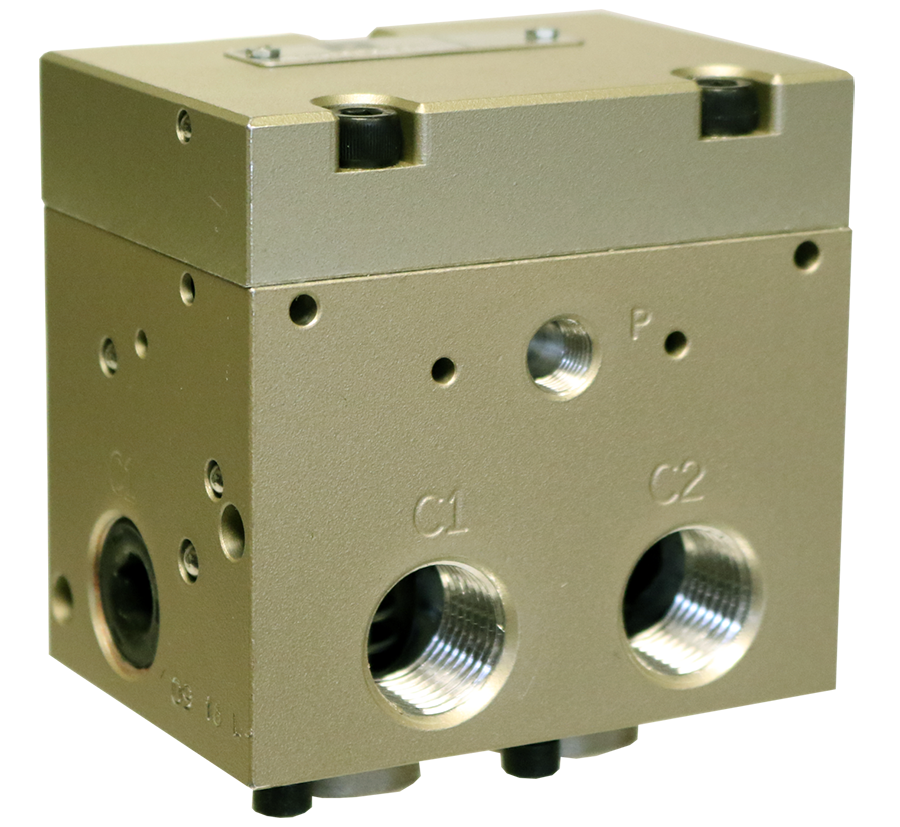

27 Series Pilot Operated Check Valves 2778D6901W
- Poppet construction for near zero leakage
- Manual or remote trapped pressure release when pressure is removed from the Blowdown Signal Port (BP)
- Inline Mounting
Need Help? No Problem!
Customer Service
Technical Service
+33-(0)1-49-45-65-65
Need Help? No Problem!
Customer Service
Technical Service
+33-(0)1-49-45-65-65
Product Information
| Series | 27 |
| Construction | Poppet |
| Ports 1-2 Flow | 8.5 Cv (8364 Nl/min) |
| Length | 5.78 in (146.8 mm) |
| Width | 3.84 in (97.6 mm) |
| Height | 5.77 in (146.5 mm) |
| Weight | 6.1 lb (2.8 kg) |
| Valve Function | 2/2 Pneumatic PO Check |
| Default | Normally Closed |
| Actuation | Electrical |
| Pressure Release Type | Remote Pressure Relief |
| Port 1 Size | 1" |
| Port 2 Size | 1" |
| Thread Type | NPT |
| Voltage | 24 VDC |
| Power Consumption | 60 watts |
| Electrical Connection | 3-Pin Mini |
| Mounting | Inline |
| Ambient Temperature Range | 40 to 175 F (4 to 80 C) |
| Media Temperature Range | 40 to 175 F (4 to 80 C) |
| Flow Media | Filtered Air |
| Operating Pressure | 15 to 150 psig (1 to 10 bar) |
| Valve Body Material | Cast Aluminum |
| Poppet Material | Acetal and Stainless Steel |
| Seal Material | Buna-N |
| Safety Category | Category 1 |
| PL Rating | PL c |
| Safety Integrity Level | SIL 2 |
| DGUV Certification | No |
| CE Certification | No |
| EAC Declaration | Yes |
| CSA/UL Certification | No |
+
27 Series Pilot Operated Check Valves
2778D6901W
