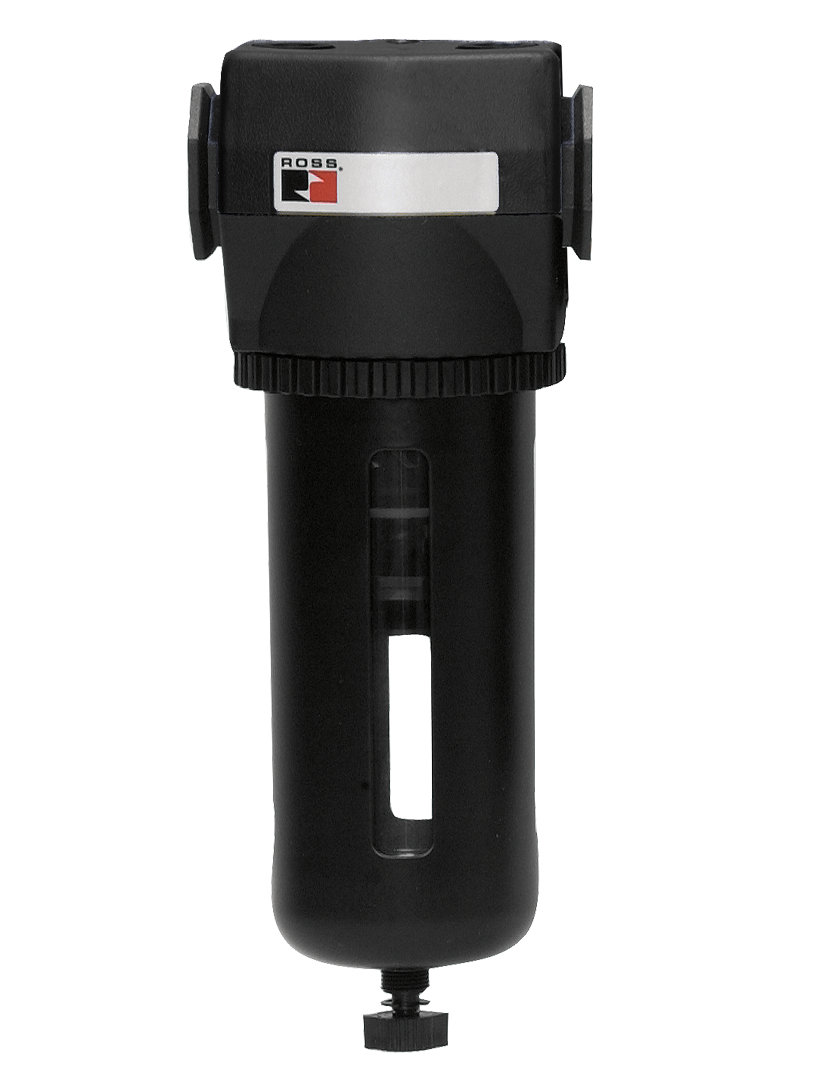

MD4 Series MD450PBAB52A
- Modular or inline mounting
- Polycarbonate plastic bowl with steel shatterguard, or metal bowl with sight glass
- Optional differential pressure gauge
- Automatic drain, manual drain, automatic external drain, or electronic drain
Need Help? No Problem!
Customer Service
Technical Service
+33-(0)1-49-45-65-65
Need Help? No Problem!
Customer Service
Technical Service
+33-(0)1-49-45-65-65
Product Information
| PORT SIZE | 3/4 |
| PORT THREAD | NPTF |
| FILTER TYPE | 5 µm |
| DRAIN TYPE | Automatic |
| BOWL TYPE | Polycarbonate |
| MOUNTING | Modular |
| FILTER MATERIAL | Polyethylene |
| PORT TYPE | Threaded Ports |
| GAUGE | No Gauge |
| MAXIMUM FLOW | 205 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 150 psig (10 bar) |
| AMBIENT TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
| MEDIA TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
+
MD4 Series
MD450PBAB52A
Contact Us for a 3D Model
+
MD4 Series
MD450PBAB52A
Contact ROSS France for Ordering Information
+
